Spark 常用的几种模式部署

Spark 支持本地运行模式（Local 模式）、独立运行模式（Standalone 模式）、Mesos、YARN（Yet Another Resource Negotiator）、Kubernetes 模式等。

一、Spark Local 模式

1.1 下载解压 Spark

[hadoop@hadoop1 ~/downloads]$ wget https://dlcdn.apache.org/spark/spark-3.1.2/spark-3.1.2-bin-hadoop2.7.tgz
[hadoop@hadoop1 ~]$ tar xf downloads/spark-3.1.2-bin-hadoop2.7.tgz

#配置环境变量
[hadoop@hadoop1 ~]$ vim .bash_profile
export SPARK_HOME=/home/hadoop/spark-3.1.2-bin-hadoop2.7
export PATH=$HIVE_HOME/bin:$PATH:$STORM_HOME/bin:$SPARK_HOME/bin

[hadoop@hadoop1 ~]$ source .bash_profile

解压目录说明

bin：可执行脚本
conf：配置文件
data：示例程序使用数据
examples：示例程序
jars：依赖 jar 包
python：pythonAPI
R：R 语言 API
sbin：集群管理命令
yarn：整合yarn需要的东西

1.2 启动 spark-shell

[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/bin/spark-shell --master local[1]
21/11/09 10:39:08 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Using Spark's default log4j profile: org/apache/spark/log4j-defaults.properties
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://hadoop1:4040
Spark context available as 'sc' (master = local[1], app id = local-1636425555582).
Spark session available as 'spark'.
Welcome to
      ____              __
     / __/__  ___ _____/ /__
    _\ \/ _ \/ _ `/ __/  '_/
   /___/ .__/\_,_/_/ /_/\_\   version 3.1.2
      /_/

Using Scala version 2.12.10 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_301)
Type in expressions to have them evaluated.
Type :help for more information.

spark-shell –master local[N] 表示在本地模拟N个线程来运行当前任务
spark-shell –master local[*] 表示使用当前机器上所有可用的资源

1.3 计算圆周率案例

[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/bin/spark-submit \
--class org.apache.spark.examples.SparkPi \
--executor-memory 1G \
--total-executor-cores 1 \
spark-3.1.2-bin-hadoop2.7/examples/jars/spark-examples_2.12-3.1.2.jar \
100

…………
21/11/09 11:01:43 INFO TaskSetManager: Finished task 99.0 in stage 0.0 (TID 99) in 30 ms on hadoop1 (executor driver) (100/100)
21/11/09 11:01:43 INFO DAGScheduler: ResultStage 0 (reduce at SparkPi.scala:38) finished in 2.820 s
21/11/09 11:01:43 INFO DAGScheduler: Job 0 is finished. Cancelling potential speculative or zombie tasks for this job
21/11/09 11:01:43 INFO TaskSchedulerImpl: Removed TaskSet 0.0, whose tasks have all completed, from pool
21/11/09 11:01:43 INFO TaskSchedulerImpl: Killing all running tasks in stage 0: Stage finished
21/11/09 11:01:43 INFO DAGScheduler: Job 0 finished: reduce at SparkPi.scala:38, took 2.956005 s
Pi is roughly 3.1415763141576316
21/11/09 11:01:43 INFO SparkUI: Stopped Spark web UI at http://hadoop1:4041
21/11/09 11:01:44 INFO MapOutputTrackerMasterEndpoint: MapOutputTrackerMasterEndpoint stopped!
21/11/09 11:01:44 INFO MemoryStore: MemoryStore cleared
21/11/09 11:01:44 INFO BlockManager: BlockManager stopped
21/11/09 11:01:44 INFO BlockManagerMaster: BlockManagerMaster stopped
21/11/09 11:01:44 INFO OutputCommitCoordinator$OutputCommitCoordinatorEndpoint: OutputCommitCoordinator stopped!
21/11/09 11:01:44 INFO SparkContext: Successfully stopped SparkContext
21/11/09 11:01:44 INFO ShutdownHookManager: Shutdown hook called
21/11/09 11:01:44 INFO ShutdownHookManager: Deleting directory /tmp/spark-19b0ca6d-7ff5-4a75-b8d3-df59185049fc
21/11/09 11:01:44 INFO ShutdownHookManager: Deleting directory /tmp/spark-6400e584-4c21-427a-a445-644793b60378

二、Spark Standalone 模式

服务规划

服务器	IP地址	spark角色	其它依赖
hadoop1	10.10.8.11	Master、Slave	JDK1.8
hadoop2	10.10.8.12	Slave	JDK1.8
hadoop3	10.10.8.13	Slave	JDK1.8

2.1 准备工作

服务器免密登录

[dev@hadoop1 ~]# su - hadoop
[hadoop@hadoop1 ~]$ ssh-keygen
[hadoop@hadoop1 ~]$ ssh-copy-id hadoop1
[hadoop@hadoop1 ~]$ ssh-copy-id hadoop2
[hadoop@hadoop1 ~]$ ssh-copy-id hadoop3

配置jdk 1.8环境

[hadoop@hadoop1 ~]$ tar xf downloads/jdk-8u301-linux-x64.tar.gz
[hadoop@hadoop1 ~]$ vim .bash_profile
export JAVA_HOME=/home/hadoop/jdk1.8.0_301
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH

[hadoop@hadoop1 ~]$ source .bash_profile

2.2 修改 spark 配置

#下载spark
[hadoop@hadoop1 ~/downloads]$ wget https://dlcdn.apache.org/spark/spark-3.1.2/spark-3.1.2-bin-hadoop2.7.tgz
[hadoop@hadoop1 ~]$ tar xf downloads/spark-3.1.2-bin-hadoop2.7.tgz
[hadoop@hadoop1 ~]$ cd spark-3.1.2-bin-hadoop2.7/conf/

修改 spark-env.sh 配置文件

[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7/conf]$ cp spark-env.sh.template spark-env.sh
[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7/conf]$ vim spark-env.sh
# java环境变量
export JAVA_HOME=/home/hadoop/jdk1.8.0_301
# spark home
export SPARK_HOME=/home/hadoop/spark-3.1.2-bin-hadoop2.7
# spark集群master进程主机host
export SPARK_MASTER_HOST=hadoop1
# spark运行产生临时数据目录
export SPARK_LOCAL_DIRS=$SPARK_HOME/datas

修改 slaves 配置文件

[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7/conf]$ vim slaves
hadoop1
hadoop2
hadoop3

2.3 分发 spark 配置

将spark配置拷贝到其它服务器上

1 2	[hadoop@hadoop1 ~]$ rsync -av spark-3.1.2-bin-hadoop2.7 hadoop@hadoop2:~/ [hadoop@hadoop1 ~]$ rsync -av spark-3.1.2-bin-hadoop2.7 hadoop@hadoop3:~/

2.4 启动 spark 集群

#启动master
[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-slave.sh

#启动slaves
[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-slaves.sh

2.5 计算圆周率案例

# Standalone cluster模式运行
[hadoop@hadoop3 ~/spark-3.1.2-bin-hadoop2.7]$ ./bin/spark-submit \
--class org.apache.spark.examples.SparkPi \
--master spark://hadoop1:7077 \
--deploy-mode cluster \
examples/jars/spark-examples_2.12-3.1.2.jar \
1000

# Standalone client模式运行
[hadoop@hadoop3 ~/spark-3.1.2-bin-hadoop2.7]$ .bin/spark-submit  \
--master spark://hadoop1:7077 \
--class org.apache.spark.examples.SparkPi \
examples/jars/spark-examples_2.12-3.1.2.jar \
1000

三、Spark Standalone 高可用

服务规划

服务器	IP地址	spark角色	其它依赖
hadoop1	10.10.8.11	Master、Slave	JDK1.8、zookeeper
hadoop2	10.10.8.12	Master、Slave	JDK1.8、zookeeper
hadoop3	10.10.8.13	Slave	JDK1.8、zookeeper

3.1 修改 spark 配置

在Spark Standalone 模式的基础上修改spark-env.sh配置文件，增加zk配置

[hadoop@hadoop1 ~]$ vim spark-3.1.2-bin-hadoop2.7/conf/spark-env.sh
# java环境变量
export JAVA_HOME=/home/hadoop/jdk1.8.0_301
# spark home
export SPARK_HOME=/home/hadoop/spark-3.1.2-bin-hadoop2.7
# spark集群master进程主机host
export SPARK_MASTER_HOST=hadoop1
# spark运行产生临时数据目录
export SPARK_LOCAL_DIRS=$SPARK_HOME/datas
# 配置zk 此处能够独立配置zk list,逗号分隔
export SPARK_DAEMON_JAVA_OPTS="
-Dspark.deploy.recoveryMode=ZOOKEEPER
-Dspark.deploy.zookeeper.url=hadoop1,hadoop2,hadoop3
-Dspark.deploy.zookeeper.dir=/spark"

3.2 分发 spark 配置

将spark配置拷贝到其它服务器上

1 2	[hadoop@hadoop1 ~]$ rsync -av spark-3.1.2-bin-hadoop2.7 hadoop@hadoop2:~/ [hadoop@hadoop1 ~]$ rsync -av spark-3.1.2-bin-hadoop2.7 hadoop@hadoop3:~/

3.3 修改 master2 配置

修改master2机器上的spark-env.sh配置文件 SPARK_MASTER_HOST 参数，将master地址指向master2服务器

1
2
3

[hadoop@hadoop2 ~]$ vim spark-3.1.2-bin-hadoop2.7/conf/spark-env.sh

export SPARK_MASTER_HOST=hadoop2

3.4 启动 spark 集群

#启动master1
[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-master.sh
#启动master2
[hadoop@hadoop2 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-master.sh

#启动slaves
[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-slaves.sh

如果和其它服务端口冲突可以修改 start-master.sh 中的 SPARK_MASTER_WEBUI_PORT=8080 更改为其它端口

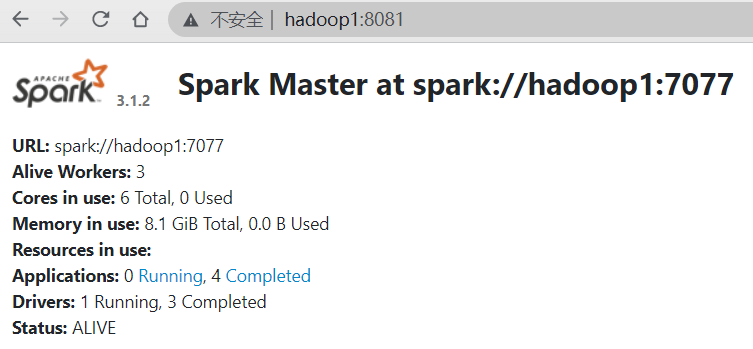

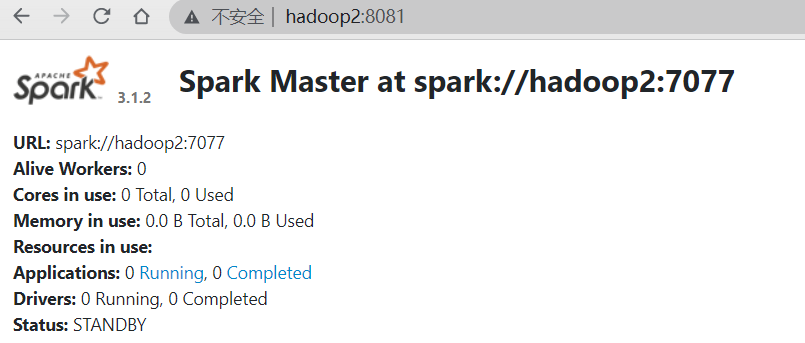

查看 spark web页面

3.4 验证高可用

停止 master 节点服务

1	[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/stop-master.sh

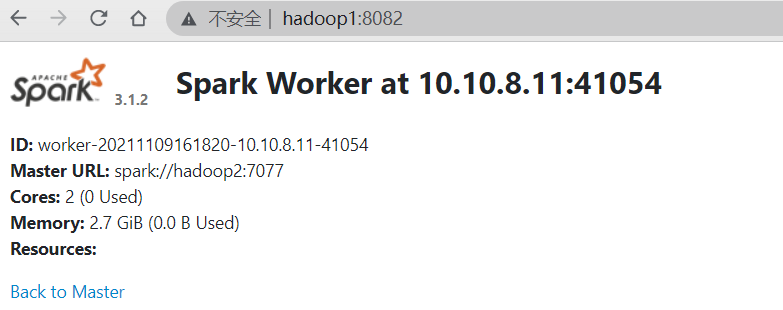

访问master1节点

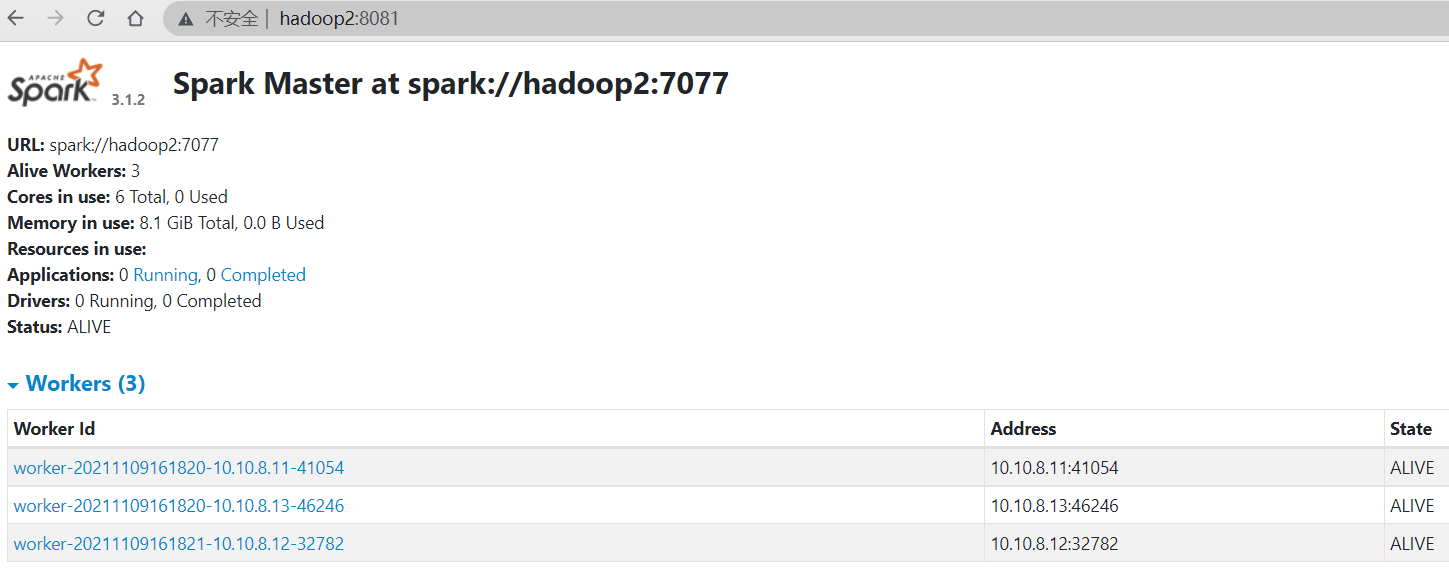

访问master2节点

四、Spark on YARN模式

服务规划

主机名	IP地址	spark角色	依赖服务
hadoop1	10.10.8.11	Master、Slave	JDK1.8、YARN
hadoop2	10.10.8.12	Slave	JDK1.8、YARN
hadoop3	10.10.8.13	Slave	JDK1.8、YARN

前置条件

hadoop yarn集群是可用的

4.1 准备工作

服务器免密登录

[dev@hadoop1 ~]# su - hadoop
[hadoop@hadoop1 ~]$ ssh-keygen
[hadoop@hadoop1 ~]$ ssh-copy-id hadoop1
[hadoop@hadoop1 ~]$ ssh-copy-id hadoop2
[hadoop@hadoop1 ~]$ ssh-copy-id hadoop3

配置jdk 1.8环境

[hadoop@hadoop1 ~]$ tar xf downloads/jdk-8u301-linux-x64.tar.gz
[hadoop@hadoop1 ~]$ vim .bash_profile
export JAVA_HOME=/home/hadoop/jdk1.8.0_301
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH

[hadoop@hadoop1 ~]$ source .bash_profile

4.2 修改 spark 配置

修改master2机器上的spark-env.sh配置，增加hadoop YARN配置文件目录

[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7/conf]$ cp spark-env.sh.template spark-env.sh
[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7/conf]$ vim spark-env.sh
export JAVA_HOME=/home/hadoop/jdk1.8.0_301
export SPARK_HOME=/home/hadoop/spark-3.1.2-bin-hadoop2.7
export SPARK_MASTER_HOST=hadoop1
export SPARK_LOCAL_DIRS=$SPARK_HOME/datas
export HADOOP_HOME=/home/hadoop/hadoop-2.7.2
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop

修改 slaves 配置文件

[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7/conf]$ vim slaves
hadoop1
hadoop2
hadoop3

4.3 分发 spark 配置

将spark配置拷贝到其它服务器上

1 2	[hadoop@hadoop1 ~]$ rsync -av spark-3.1.2-bin-hadoop2.7 hadoop@hadoop2:~/ [hadoop@hadoop1 ~]$ rsync -av spark-3.1.2-bin-hadoop2.7 hadoop@hadoop3:~/

4.4 启动 spark 集群

#启动master
[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-master.sh

#启动slaves
[hadoop@hadoop1 ~]$ ./spark-3.1.2-bin-hadoop2.7/sbin/start-slaves.sh

如果和其它服务端口冲突可以修改 start-master.sh 中的 SPARK_MASTER_WEBUI_PORT=8080 更改为其它端口

4.5 运行示例

# cluster模式运行
[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7]$ ./bin/spark-submit \
--class org.apache.spark.examples.SparkPi \
--master yarn \
--deploy-mode cluster \
examples/jars/spark-examples_2.12-3.1.2.jar \
10

# client模式运行
[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7]$ ./bin/spark-submit \
--class org.apache.spark.examples.SparkPi \
--master yarn \
--deploy-mode client \
examples/jars/spark-examples_2.12-3.1.2.jar \
10

client模式如果运行报错：ERROR spark.SparkContext: Error initializing SparkContext. 修改 spark-env.sh 添加 export SPARK_LOCAL_IP=<IP_Address> 配置

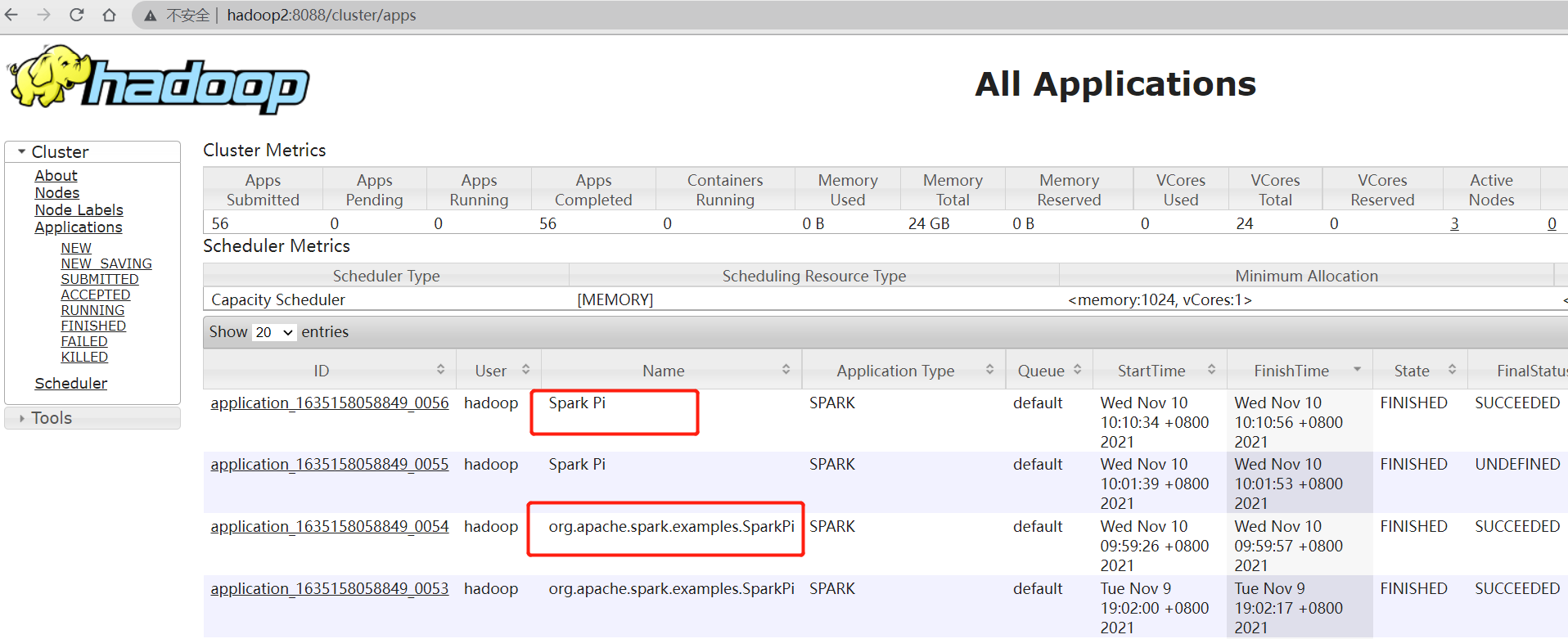

4.6 在 YRAN 上查看任务

五、Spark on Mesos 模式

服务规划

主机名	IP地址	mesos角色
hadoop1	10.10.8.11	Master、Agent

前置条件

spark 是可用的

5.1 部署mesos

编译安装 mesos

[hadoop@hadoop1 ~/downloads]$ wget http://archive.apache.org/dist/mesos/1.9.0/mesos-1.9.0.tar.gz
[hadoop@hadoop1 ~/downloads]$ tar xf mesos-1.9.0.tar.gz
[hadoop@hadoop1 ~/downloads]$ sudo wget http://repos.fedorapeople.org/repos/dchen/apache-maven/epel-apache-maven.repo -O /etc/yum.repos.d/epel-apache-maven.repo
[hadoop@hadoop1 ~/downloads]$ subversion install below.
[hadoop@hadoop1 ~/downloads]$ sudo yum install -y epel-release
[hadoop@hadoop1 ~/downloads]$ sudo bash -c 'cat > /etc/yum.repos.d/wandisco-svn.repo <<EOF
[WANdiscoSVN]
name=WANdisco SVN Repo 1.9
enabled=1
baseurl=http://opensource.wandisco.com/centos/7/svn-1.9/RPMS/\$basearch/
gpgcheck=1
gpgkey=http://opensource.wandisco.com/RPM-GPG-KEY-WANdisco
EOF'

[hadoop@hadoop1 ~/downloads]$ sudo yum groupinstall -y "Development Tools"
[hadoop@hadoop1 ~/downloads]$ sudo yum install -y apache-maven python-devel python-six python-virtualenv zlib-devel libcurl-devel openssl-devel cyrus-sasl-devel cyrus-sasl-md5 apr-devel subversion-devel apr-util-devel

[hadoop@hadoop1 ~/downloads]$ cd mesos-1.9.0
[hadoop@hadoop1 ~/downloads/mesos-1.9.0]$ ./bootstrap
[hadoop@hadoop1 ~/downloads/mesos-1.9.0]$ mkdir build
[hadoop@hadoop1 ~/downloads/mesos-1.9.0]$ cd build
[hadoop@hadoop1 ~/downloads/mesos-1.9.0/build]$ ../configure
[hadoop@hadoop1 ~/downloads/mesos-1.9.0/build]$ make
[hadoop@hadoop1 ~/downloads/mesos-1.9.0/build]$ make check
[hadoop@hadoop1 ~/downloads/mesos-1.9.0/build]$ sudo make install

[hadoop@hadoop1 ~]$ ln -s downloads/mesos-1.9.0/build/bin mesos
[hadoop@hadoop1 ~]$ cd mesos

启动 mesos

# 启动 mesos master
[hadoop@hadoop1 ~/mesos]$ ./bin/mesos-master.sh --ip=10.10.8.11 --work_dir=/home/hadoop/mesos/mesos_master

# 启动 mesos agent
[hadoop@hadoop1 ~/mesos]$ ./bin/mesos-agent.sh --master=hadoop1:5050 --work_dir=/home/hadoop/mesos/mesos_agent

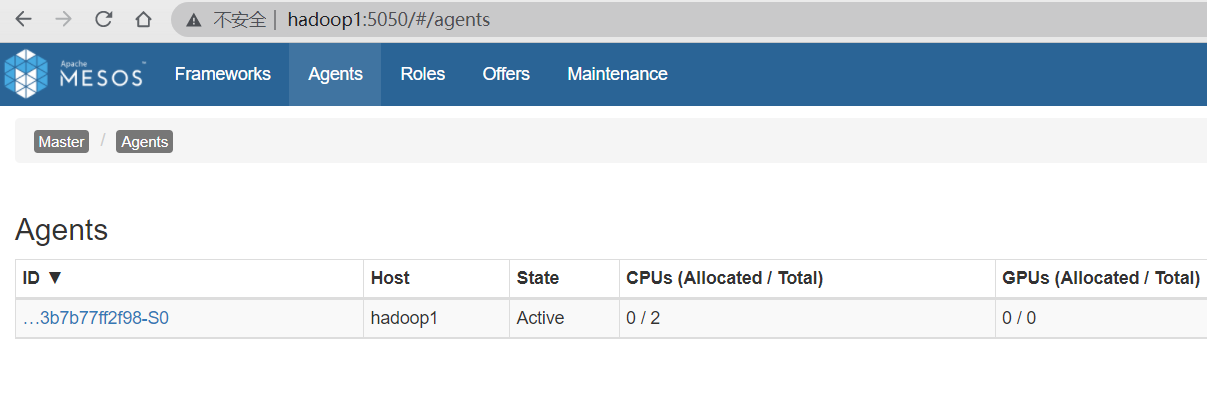

访问 mesos WEB页面

5.2 spark 配置

将当前使用的spark二进制包上传到hdfs

1	[hadoop@hadoop1 ~]$ hdfs dfs -put ~/downloads/spark-3.1.2-bin-hadoop2.7.tgz spark-3.1.2-bin-hadoop2.7.tgz

修改 spark-env.sh 配置文件，增加mesos相关配置

1
2
3

[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7]$ vim conf/spark-env.sh
export MESOS_NATIVE_JAVA_LIBRARY=/usr/local/lib/libmesos.so
export SPARK_EXECUTOR_URI=hdfs://hadoop2:8020/user/hadoop/spark-3.1.2-bin-hadoop2.7.tgz

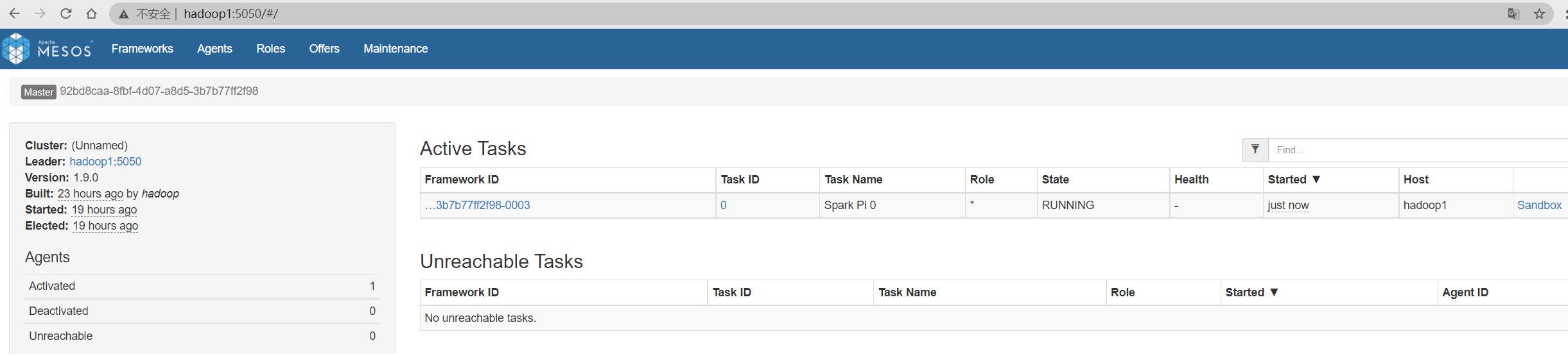

5.3 运行示例

[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7]$ ./bin/spark-submit \
--class org.apache.spark.examples.SparkPi \
--master mesos://hadoop1:5050 \
examples/jars/spark-examples_2.12-3.1.2.jar \
1000

或使用spark-shell

# 上传示例文件到hdfs
[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7]$ hdfs dfs -put README.md

# 统计文件行数
[hadoop@hadoop1 ~/spark-3.1.2-bin-hadoop2.7]$ ./bin/spark-shell --master mesos://hadoop1:5050

scala> val lines  = sc.textFile("README.md")
lines: org.apache.spark.rdd.RDD[String] = README.md MapPartitionsRDD[1] at textFile at <console>:24

scala> lines.count()
res0: Long = 108

同时前往mesos WEB查看进行中的任务

一、Spark Local 模式

1.1 下载解压 Spark

1.2 启动 spark-shell

1.3 计算圆周率案例

二、Spark Standalone 模式

2.1 准备工作

2.2 修改 spark 配置

2.3 分发 spark 配置

2.4 启动 spark 集群

2.5 计算圆周率案例

三、Spark Standalone 高可用

3.1 修改 spark 配置

3.2 分发 spark 配置

3.3 修改 master2 配置

3.4 启动 spark 集群

3.4 验证 高可用

四、Spark on YARN模式

4.1 准备工作

4.2 修改 spark 配置

4.3 分发 spark 配置

4.4 启动 spark 集群

4.5 运行示例

4.6 在 YRAN 上查看任务

五、Spark on Mesos 模式

5.1 部署mesos

5.2 spark 配置

5.3 运行示例

3.4 验证高可用
